Chocolate Ball Mill (500 kg)
| 1 | Capacity | 500 Kg per 3 hours |
| 2 | Material | SS 304 |
| 3 | Motor | 20 Hp Siemens Motor Qty-1 |

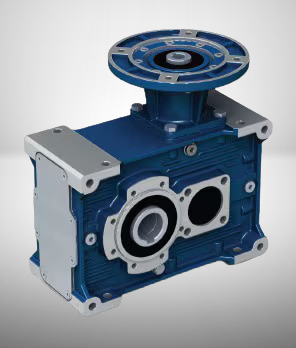

| 4 | Gear Box | 1 Gear Box Motor Alicon Make |
| 5 | Transfer Pump | 2 Hp Pump Motor With JKT Ball Qty-1 |
| 6 | PIC Panel | Solo Night Ball |
| 7 | Filter | Magnet Filter with Surveillance Pipeline |
| 8 | Heater | 4 Kw Heater Qty-1 |
| 9 | Size | L-3213mm X W-1600mm X H-2234mm |
Chocolate Ball Mill (1000 kg)
| 1 | Capacity | 1000 kg per 3 hours |
| 2 | Material | SS 304 |
| 3 | Motor | 20 Hp Siemens motor Qty-1 |
| 4 | Gear Box | 1 Gear Box Motor Alicon Make |
| 5 | Transfer Pump | 3 Hp pump motor With JKT Ball Qty-1 |
| 6 | PIC Panel | Solo night Ball |
| 7 | Filter | Magnet Filter With Surveillance Pipeline |
| 8 | Heater | 4 Kw Heater Qty-2 |
| 9 | Size | L-1855mm X W-1800mm X H-2271mm |
Details
About Ball Mill
The purpose of the chocolate ball mill refining machine is to finely grind chocolate cream
and other similar oil-based goods. The chocolate mass will be evenly ground within the double-jacketed steel
cylinder to a particle size of 15 to 25 microns.
...
